Inject faults on purpose

Real systemsLesson 4 of 4About 9 minutes

You will

• Replace one service for a test and check recovery after publish failures
• Follow failed HTTP notifications through retries to a dead-letter queue
• Read a real regression from the trace the repository kept

You need

• Lesson 3, Point the suite at a real stack
• Optional: an OpenCSMS checkout and a container runtime. The kept trace is on this site.

The problem

A recovery test needs a repeatable failure. OpenCSMS tests inject publish errors and make an HTTP notification target return 503. They then check the retry result and stored invoice.

OpenCSMS commits an ended charging session and its event together. The event waits in an outbox, a database table of messages to publish. If publication fails, a dispatcher retries the stored message.

Do it

1. Substitute the failing piece

An outbox test replaces the API's event publisher, the component that sends events to RabbitMQ, on a dedicated server owned by that test. The substitute fails a chosen number of matching attempts, then delegates to the product's RabbitMQ publisher:

FailFirstAttemptsEventPublisher.cs3 notes

1public async ValueTask PublishAsync<T>(string routingKey, T message, CancellationToken cancellationToken = default)
2{
3if (_matches is not null && !_matches(routingKey, message))1
4{
5await _publisher.PublishAsync(routingKey, message, cancellationToken);
6return;
7}
8
9if (Interlocked.Increment(ref _attempts) <= _failures)2
10{
11Interlocked.Increment(ref _observedFailures);
12throw new InvalidOperationException(
13$"Publish attempt {Attempts} for '{routingKey}' failed (injected for this test).");
14}
15
16await _publisher.PublishAsync(routingKey, message, cancellationToken);3
17}

1. 1
   Match the test's session

   Other messages pass through untouched.

2. 2
   Fail the first N

   The first N matching publishes throw.

3. 3
   Then travel the real path

   A retry is a real publish through the product's publisher.

From the suite, registered per test with Proto.Context.Override<IEventPublisher>(publisher).

The predicate limits which messages fail. It does not hide the shared database's outbox rows from other dispatchers.

Two tests check the recovery:

• AFailedPublishIsRetriedByTheDispatcherAndBillsOnce fails one publish. It checks one pending outbox row, then after the retry one stored invoice and no pending row.
• ABrokerOutageIsRiddenOutByMoreThanOneBackedOffRetry fails two attempts inside an open transaction, so no other dispatcher takes the row. It checks two failures, a sent timestamp and one invoice.

From the OpenCSMS repository root, with a container runtime:

dotnet test tests/OpenCsms.Suite --filter "FullyQualifiedName~OutboxTests"

2. Keep a target down

The notification journeys use WireMock servers: fake HTTP endpoints the run starts in place of the real notification targets. One journey makes a target return 503 for notifications about its charging session. Each 503 makes the notification consumer try again, by republishing the message to the same RabbitMQ queue. After three retries, it dead-letters the fourth failed delivery. That sends the notification to a queue for deliveries the consumer gave up on.

The test checks three things:

• The target saw four requests, every one a 503.
• The dead letter carries the event's own facts and x-opencsms-retries: 3.
• The session has one stored invoice with the expected id and total.

The rejection matches the session id in the request body, so other sessions still get the target's default 202.

3. Read a regression the repository kept

One fault was not injected. Billing used to read the tariff when the worker processed session.ended. So when an operator repriced a tariff while a car was still plugged in, the bill lost the idle fee for time already spent, and nothing reported it.

The failing trace is kept at docs/static/traces/opencsms-showpiece.prototrace. It recorded two assertions that failed together:

FAILED OpenCsms.Suite.Journeys.IdleFeeAfterTariffChange.TheIdleFeeStillAppliesAfterAReprice (486 ms)
  the idle fee the session started under still applies
  Assert.That(stored.IdleFeeAmount, Is.EqualTo(10.00m))
    Expected: 10m
    But was:  0m
  22 kWh at the tariff the session started under, the start fee and the idle fee
  Assert.That(stored.Total, Is.EqualTo(20.30m))
    Expected: 20.3m
    But was:  13.6m

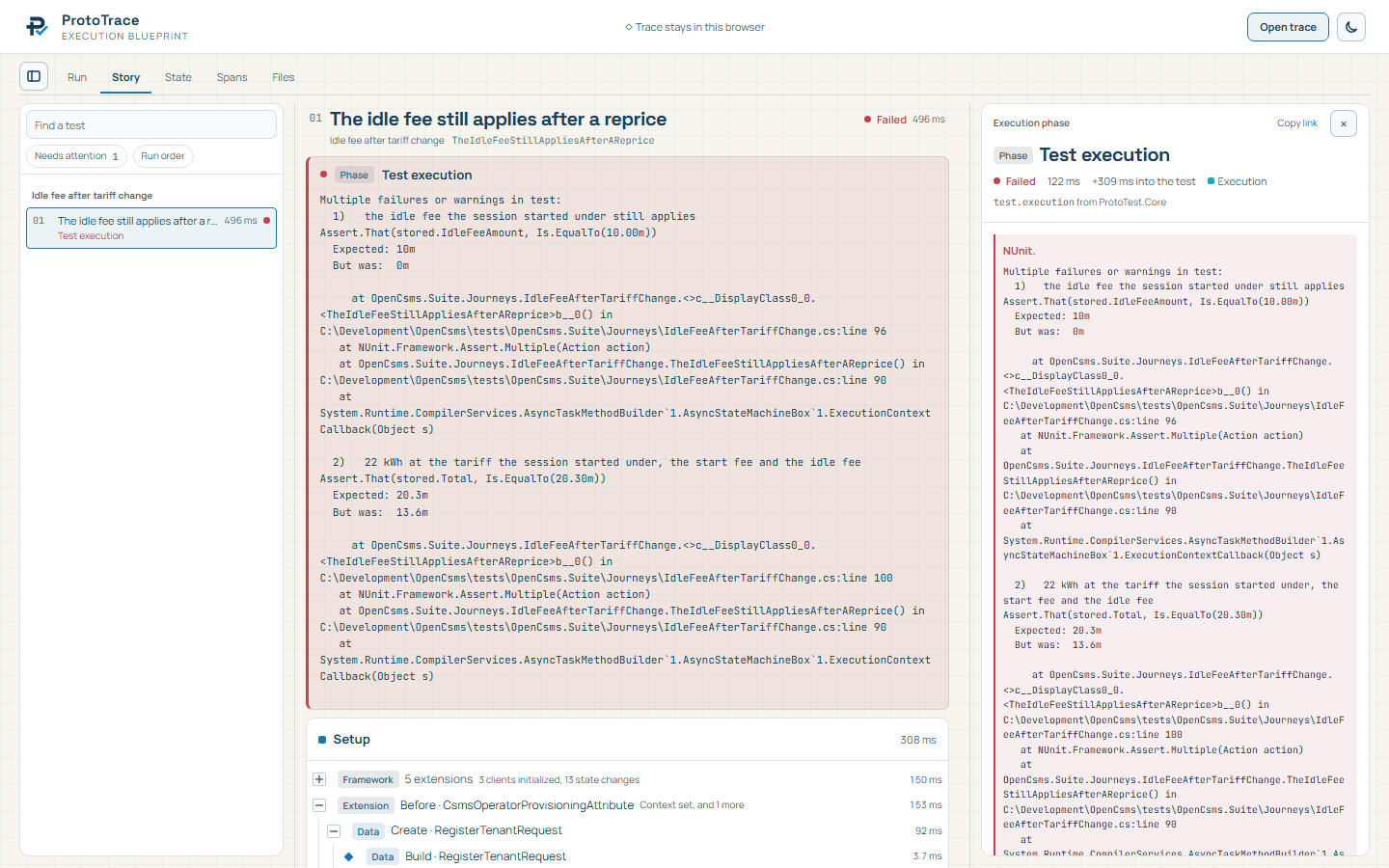

Download the trace and open it in the viewer:

opencsms-showpiece.prototrace

What happened

The publisher override changes one test's API server. Successful retries still use the product's RabbitMQ path. The outbox tests check recovery after the injected failures, including one invoice for each tested session.

The HTTP-target tests check a different failure: rejected notification delivery after billing.

The historical trace records a pricing regression. The current implementation copies tariff terms into SessionTariff when the charging session starts. Billing reads that stored snapshot instead of the edited tariff. The journey still asserts five idle hours, a 10.00 idle fee and a 20.30 total.

Injection has limits. The injected publisher fails attempts but does not kill the broker. These tests need an in-process application and hosted workers, so the external modes skip them.

Check yourself

A fake rejects every notification for one invoice with 503. How many requests does the target see before the delivery is dead-lettered, and what does the dead letter carry?

Verify

Read the three points under "Keep a target down" above. The journey NotificationTargetOutagesAreDeadLettered in the suite asserts that shape.

Remember

• Override a service on a test-owned server, and match the fault to that test's messages.
• Check both the failed delivery's retry history and the resulting product state.
• A kept trace is the evidence of a real regression.

Next: Write your own attribute.

Go deeper

• ProtoTrace: what the viewer reads, and what the archive cannot see.
