Run the suite on containers

Real systemsLesson 1 of 4About 8 minutes

You will

• Run the suite with PostgreSQL and RabbitMQ containers the run owns
• Read the chain that decides who provides the database and the broker
• Say what the run does when the environment already provides them

You need

• The Reliable tests track
• To run the commands: an OpenCSMS checkout with its .NET tooling, PowerShell, Node.js/npm and a container runtime

The problem

A suite that needs a database and a broker usually asks you to install both first. You would rather start the suite and let it bring what it needs.

These lessons use recorded runs from OpenCSMS, a separate suite. You can follow them without its checkout. Running the commands needs it.

OpenCSMS manages EV charging. It has a REST API with a dashboard, PostgreSQL for storage, RabbitMQ for events, and billing and notification workers. Its suite has one setup class and four modes. This track reads three modes, then examines failures the suite creates deliberately.

Do it

1. Run the suite in container mode

From the OpenCSMS repository root, with a container runtime available:

pwsh eng/run-suite.ps1 -Mode container

The script first builds the dashboard with npm. It then runs dotnet test tests/OpenCsms.Suite -c Release and saves the test output to artifacts/gates/opencsms-container-<timestamp>.log.

A plain dotnet test tests/OpenCsms.Suite does not build the dashboard, so its browser journeys skip unless an earlier build exists.

2. Read the run's own counts

The recorded log ends with this summary:

Passed!  - Failed:     0, Passed:    75, Skipped:     0, Total:    75, Duration: 6 s - OpenCsms.Suite.dll (net8.0)

This run was recorded on 2026-09-28 in opencsms-container-20260928-194709.log. All 75 tests ran, including the seven Chromium journeys. Your checkout can produce different counts.

3. Read the chain that decided

The setup class declares each target, a thing the suite needs such as the database or the broker, the same way. Each target has a chain of providers: an ordered list of ways to get it, where the first one whose condition holds serves it:

Setup.cs4 notes

1.AddInfrastructure(
2"CsmsDatabase",
3chain => chain
4.UseConfigured()1
5.UseAspireResource<OpenCsmsAppHostAnchor>("opencsms")2
6.UseContainer(PostgresDatabase.Container()),3
7CsmsInfrastructureExtensions.ConnectionStringKey)
8.AddInfrastructure(
9"CsmsBroker",
10chain => chain
11.UseConfigured()
12.UseAspireResource<OpenCsmsAppHostAnchor>("rabbitmq")
13.UseContainer(RabbitMqBroker.Container()),
14RabbitMqOptions.ConnectionStringSetting,
15"Messaging:RabbitMq:ConnectionString")4

1. 1
   Configured values win

   UseConfigured requires a nonempty value for every key declared by this target. The database declares one key; the broker declares two.

2. 2
   Then the AppHost

   The next lesson selects this provider. It stays second, so a configured address still wins over it.

3. 3
   Then a container the run owns

   The host starts postgres:16-alpine when the container provider wins. The broker chain uses rabbitmq:3.

4. 4
   Two keys for one broker

   The final two arguments declare the broker settings. One is for the suite and one for the application. Both need values for UseConfigured to win.

From the suite's Setup.cs.

With no configured connection strings and Aspire unselected, both chains reach UseContainer. The host starts the containers and disposes them at the end. The script keeps exported connection strings in container mode, so check them before trusting the mode name.

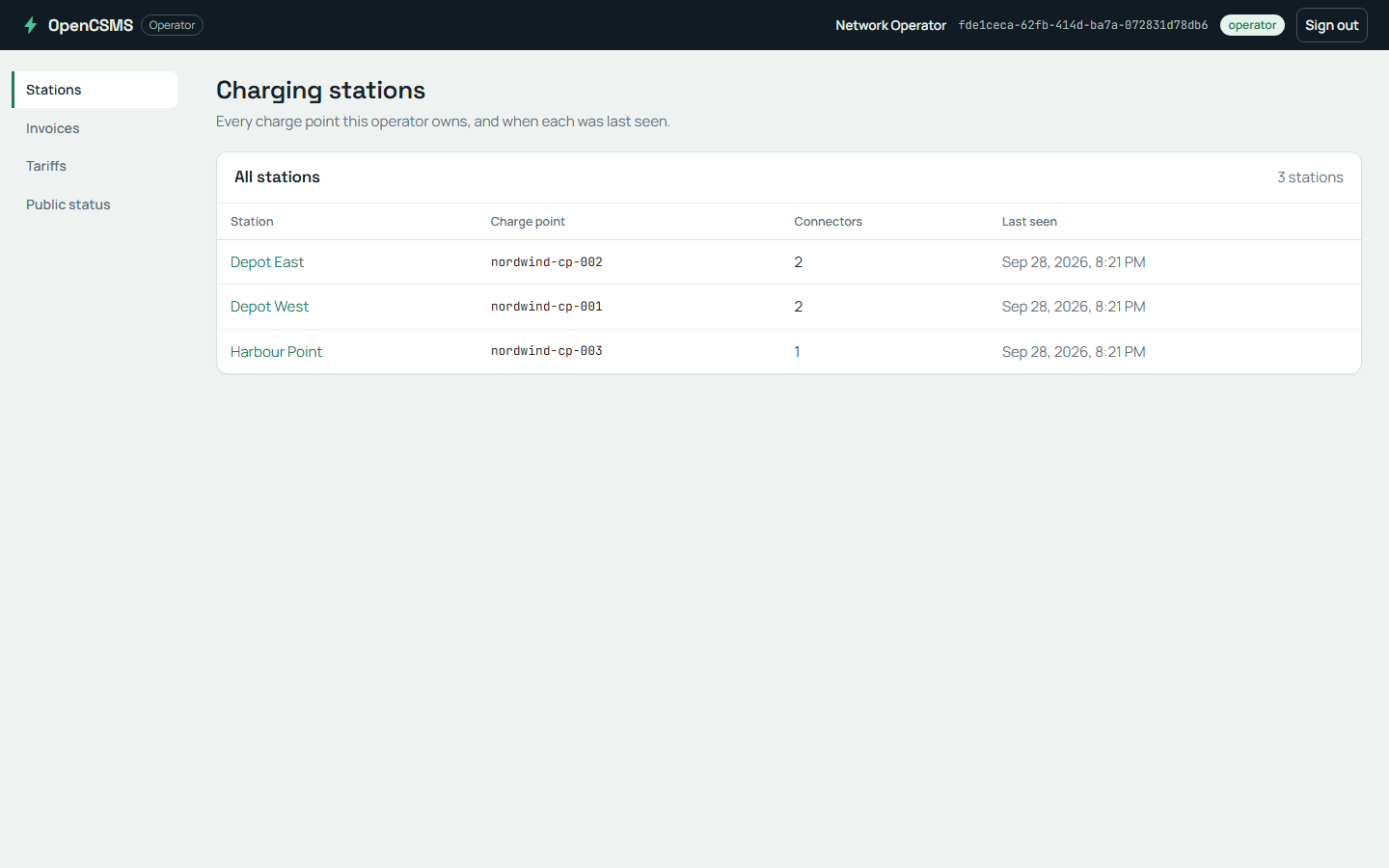

The dashboard on a local run, the screen the Chromium journeys drive.

What happened

In the recorded container run:

• The application runs inside the test process: the API and both workers, started by the host.
• The database and broker are containers the run starts and removes, postgres:16-alpine and rabbitmq:3.
• Tests: all 75 passed, with no skips in this recording.

The same setup class supports configured services. Set these environment variables to connection strings for an existing database and broker:

ConnectionStrings__Csms
Messaging__RabbitMq__ConnectionString
ProtoTest__Messaging__RabbitMq__ConnectionString

The first is the product's database. The other two are the product's broker and the suite's own messaging tap, so point both at the same broker.

Run the script with -Mode configured to require all three exported values before testing. Both configured providers then win, so these chains start no containers.

The table compares the recorded runs used in these lessons. The next two lessons explain the other two rows.

Three modes, one suiteRecorded mode comparison

Mode	API	Workers	Store and broker	Counts
Containers	In the test process	In the test process	Postgres container the run starts; RabbitMQ container the run starts	75 passed, 0 skipped of 75
Aspire topology	AppHost api project resource	AppHost project resources	AppHost Postgres container; AppHost RabbitMQ container	61 passed, 13 skipped of 74
Published	A process started outside the suite	Processes started outside the suite	Persistent container the run points at; Persistent container the run points at	61 passed, 13 skipped of 74

These rows quote separate recorded runs. The container run had 75 tests. The earlier topology and published runs had 74. Both earlier runs skipped 13 journeys. Each lesson names its source log. Your counts depend on the checkout and configuration.

Check yourself

You set ConnectionStrings__Csms to an existing database's connection string before running the script again. Which provider serves CsmsDatabase, and what happens to CsmsBroker?

Verify

Read the CsmsDatabase chain in the suite's Setup.cs, then say its first provider out loud.

Remember

• Each target follows an ordered chain, and the first provider whose condition holds serves it.
• Without configured services or Aspire selection, the fallback providers start postgres:16-alpine and rabbitmq:3 for the run.
• The script writes the test output to a log. Read that run's results alongside its configuration.

Next: Let Aspire start the topology.

Go deeper

• Environments: configured addresses, containers and deployed applications in one suite.
