Let Aspire start the topology

Real systemsLesson 2 of 4About 8 minutes

You will

• Select the AppHost with one key and read what it starts
• Tell which provider serves a target when the AppHost is selected
• Name the gates behind the journeys that skip against real processes

You need

• Lesson 1, Run the suite on containers
• Optional: an OpenCSMS checkout and a container runtime

The problem

Container mode hosted the API and workers inside the test process, with a separate loopback application for the browser. Now you want to test the API and both workers as separate processes.

OpenCSMS declares those processes and their dependencies in an Aspire AppHost: a small project that tells Aspire which processes and services to start together. This lesson reads a saved run and the configuration that selected it.

Do it

1. Read what the AppHost declares

Read Program.cs in the OpenCSMS AppHost project. It declares these resources, the processes and services Aspire starts:

• PostgreSQL, with an opencsms database, when ConnectionStrings:Csms is unset.
• RabbitMQ when Messaging:RabbitMq:ConnectionString is unset.
• The API project, which also serves the dashboard, as a project resource.
• The billing worker and the notification worker as project resources.

The API and workers receive either the configured addresses or those of the containers the AppHost starts.

2. Map its resources onto the suite's targets

The suite's registration says which resource fills which target:

Setup.cs4 notes

1.AddAspireAppHost<OpenCsmsAppHostAnchor>(1
2options => options
3.MapResource("api", CsmsTargets.Api)2
4.MapConnectionString("opencsms", CsmsInfrastructureExtensions.ConnectionStringKey)3
5.MapConnectionString("rabbitmq", RabbitMqOptions.ConnectionStringSetting),
6"api",4
7"opencsms",
8"rabbitmq")

1. 1
   Identify the AppHost

   Any public type from the AppHost project tells ProtoTest which program to run.

2. 2
   Map the API address

   The api endpoint becomes the Csms application.

3. 3
   Map the store and broker

   Connection strings land under keys the suite already uses.

4. 4
   Name the mapped resources

   They choose whose settings ProtoTest publishes, not which resources start.

From the suite's Setup.cs. The chain order still holds: a configured address wins over the AppHost.

3. Select the mode

From the OpenCSMS repository root, this command selects topology mode:

pwsh eng/run-suite.ps1 -Mode topology

The script clears the addresses published mode uses, then sets ProtoTest__Aspire__Enabled=true, builds the dashboard and runs the suite. Without that key, the registration does not start the AppHost. A configured address still comes first in each target's provider chain (lesson 1), so it wins over the AppHost.

4. Read the counts

Passed!  - Failed:     0, Passed:    61, Skipped:    13, Total:    74, Duration: 20 s - OpenCsms.Suite.dll (net8.0)

This output comes from artifacts/gates/opencsms-topology-20260928-094052.log. It lists the 13 skipped names, not their reasons. It is an earlier snapshot than lesson 1's, which has one journey more.

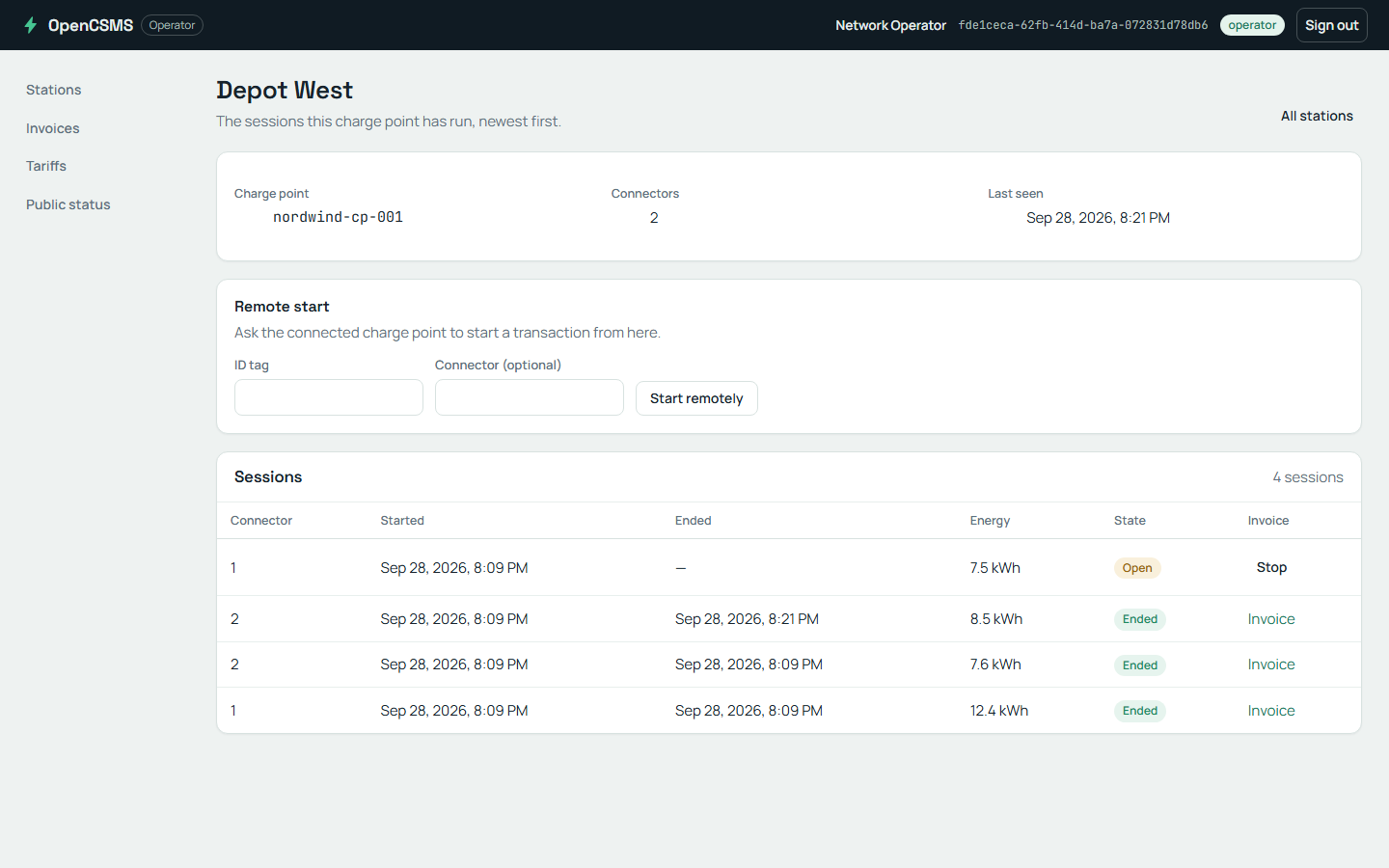

The station screen the API resource serves.

What happened

In the recorded topology run:

• The application runs as real processes: the API and both workers, started by the AppHost.
• The database and broker come from containers the AppHost starts for the run.
• The suite still owns fixtures, local HTTP fakes, clients and the trace.

The suite owns the AppHost's lifetime. Aspire manages the product processes, and ProtoTest stops the AppHost when it releases the run's resources.

The skipped names fall into three groups. Their source declares the capabilities each test needs:

Group in the saved log	Requirement missing in this mode
Seven clock-dependent journeys, including the browser invoice export	[RequiresTestClock]: the suite's clock must control the application
Two outbox retry journeys	[RequiresInProcess]: they replace the API's event publisher through its services
Four notification delivery and outage journeys	In-process application and hosted workers, plus the test clock

Some tests also declare [RequiresWorker<T>], which a separate worker process does not satisfy.

Check yourself

Why do the outbox retry and clock-dependent journeys skip even though the API and workers are running?

Verify

Compare the skipped names with OutboxTests and the clock-dependent journeys. Read their capability attributes, not only the pass count.

Remember

• The AppHost is one provider in the same chain, selected by one key.
• It runs the API and both workers as project resources beside PostgreSQL and RabbitMQ.
• Separate processes do not provide ProtoTest's in-process services or clock. Capability attributes keep those journeys from running in an unsupported mode.

Next: Point the suite at a real stack.

Go deeper

• Aspire: the selection keys, the resource map and what each provider publishes.
